Ultrasonic Thickness Testing Level II

Training Course objective

To provide a basic knowledge of Ultrasonics to enable a participant to carryout thickness gauging tests according to an established procedure under the supervision of a level II or level III personnel. The course is especially designed to provide a sound theoretical knowledge and practical skill for carrying our Ultrasonic thickness testing required.

Level II Responsibilities

To carryout operation as per written procedure/instruction from Level II personnel. He shall be able to set up the equipment, calibrate and carryout the thickness tests, classify and report the results. He shall be responsible for the choice of the test technique and assessment of the test results.

Course outline

  1. Introduction
  2. Ultrasonic Fundamentals
  3. Ultrasonic Transducers - Construction and Operation
  4. Longitudinal Waves
  5. Interfaces
  6. Effects of Reflector/Test Geometry
  7. Pulse-Echo Test Set up
  8. Couplants and Coupling Techniques
  9. Ultrasonic Instrumentation
  10. Thickness Measurement

Ultrasonic thickness test Level II Practical training

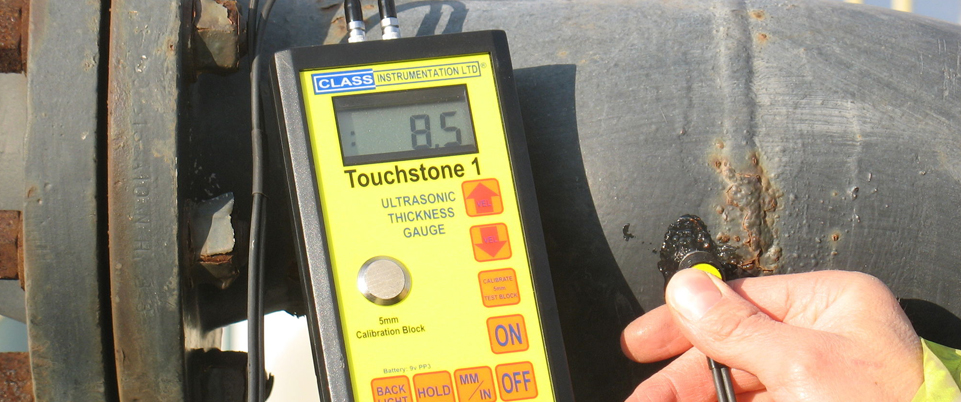

Ultrasonic thickness testing of pipes, tubes, hollow machined components, castings, plates and corroded parts
